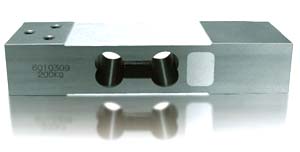

XY-672
Counter：1046  2012-04-27 9:45:08

FEATURES
          Aluminum-alloy, Colorless anodized
          Glue-sealing.

APPLICATIONS：
         Electronic counting  scales / Platform  scales etc.
         Recommended platform size 600x600mm

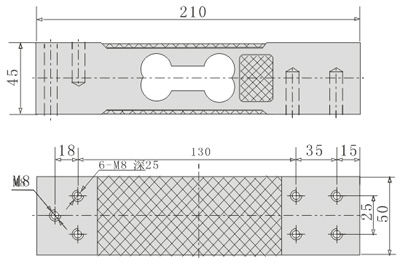

Dimensions：
Wiring Schematic Diagram：

Parameters：

 Rated Load(kg) 200
 Precision  C2 C3 Insulation Resistance(MΩ)   ≥5000(100VDC)
 Comprehensive Error(%F.S)   0.03 0.02 Excitation Voltage（V）   9～12（DC）
 Rated output(mv/v)    2±0.1 Compensated temp.Range(℃ )   -10～+40
 Non-linearity(%F.S)    0.03 0.017 Use Temp, Range(℃ ) -35～+65
 Hysteresis(%F.S)   0.03 0.02 Temp.Effect on Zero(%F.S/10℃)   0.03 0.017
 Repeatability(%F.S)  0.01 Temp.Effect on Span(%F.S/10℃)   0.02 0.014
 Creep(%F.S/30min)   0.02 Safe Overload (%F.S)   120
 Zero Balance(%F.S)     ±2 Ultimate Overload(%F.S)   150
 Input Resistance(Ω)   405±5 Defend Grade IP65
 Output Resistance(Ω )  350±5 Cable(屏蔽电缆线) φ3, 3.5m
