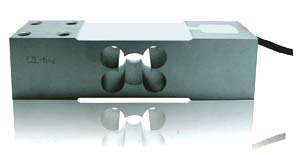

FEATURES:
Aluminum-alloy, Colorless anodized,
Glue-sealing.
APPLICATIONS：
Electronic counting scales / platform scales etc.
Recommended platform size 400x400mm
Wiring Schematic Diagram：
Parameters：
| Rated Load(kg) |
100,150,200,250,300 |
| Precision |
C2 |
C3 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Comprehensive Error(%F.S) |
0.03 |
0.02 |
Excitation Voltage（V） |
9～12（VDC） |
| Rated output(mv/v) |
2±0.1 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.03 |
0.017 |
Use Temp. Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.03 |
0.02 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
0.017 |
| Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
0.014 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
120 |
| Zero Balance(%F.S) |
±2 |
Ultimate Overload(%F.S) |
150 |
| Input Resistance(Ω) |
405±6 |
Defend Grade |
IP65 |
| Output Resistance(Ω ) |
350±5 |
Cable(屏蔽电缆线) |
φ4, 3.5m | | |
| |
|
|
