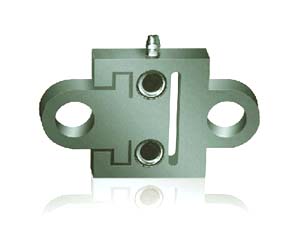

FEATURES:
Alloy steel Structure (40CrNiMoA&17-4PH)；
Glue-sealing / Welding；
High side load tolerance.
APPLICATIONS：
Truck scales / Railroad track scales etc.

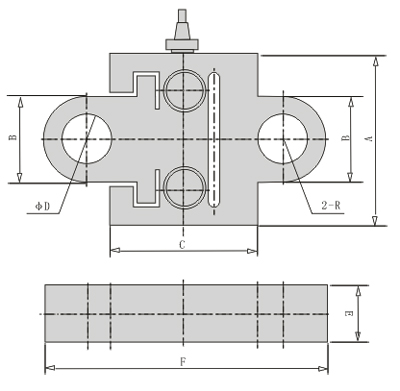

Dimensions:

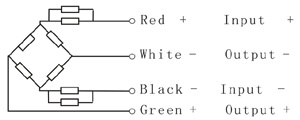

Wiring Schematic Diagram：
|
量程（t） |
A |
B |
C |
φD |
E |
F |
|
1~2 |
120 |
50 |
120 |
25 |
20 |
210 |
|
2.5~5 |
120 |
50 |
120 |
30 |
30 |
210 |
|
10 |
140 |
90 |
180 |
40 |
43 |
230 |
|
20~30 |
205 |
150 |
185 |
60 |
50 |
245 |
Parameters：
| Rated Load(t) |
1~2, 2.5~5, 10, 20~30 |
| Precision |
C1 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Comprehensive Error(%F.S) |
0.05 |
Excitation Voltage（V） |
9～12（DC） |
| Rated output(mv/v) |
2.0±0.004 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.05 |
Use Temp.Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.05 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
| Repeatability(%F.S) |
0.03 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
| Input Resistance(Ω) |
700±5 |
Defend Grade |
IP68 |
| Output Resistance(Ω ) |
700±5 |
Cable |
四芯屏蔽电缆,3m | | |
| |
|
|
