FEATURES：
Alloy steel Structure:(40CrNiMoA&17-4PH)
Glue-sealing, Welding ，High stability.
APPLICATIONS：
Hopper scales / Railroad track scales etc.

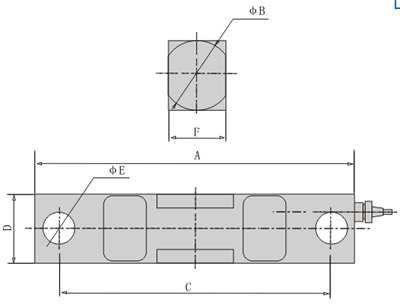

Dimensions:
|
量程（klb） |
A |
B |
C |
D |
E |
F |
|
1-5 |
190.5 |
31.5 |
158 |
31.8 |
12.7 |
31.8 |
|
10~25 |
222.3 |
50.8 |
190.5 |
49.3 |
20.6 |
36.5 |
|
25~75 |
343 |
76.2 |
292 |
74.7 |
33.5 |
62 |
Wiring Schematic Diagram：
Parameters：
|
Rated Load(klb) |
1, 5, 25, 75 |
|
Precision |
C2 |
Insulation Resistance(MΩ) |
≥5000(1000VDC) |
|
Comprehensive Error(%F.S) |
0.03 |
Excitation Voltage（V） |
9～12（DC） |
|
Rated output(mv/v) |
3.0±0.006 |
Compensated temp.Range(℃ ) |
-10～+40 |
|
Non-linearity(%F.S) |
0.03 |
Use Temp.Range(℃ ) |
-20～+55 |
|
Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
|
Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
|
Creep(%F.S/30min) |
0.03 |
Safe Overload (%F.S) |
150 |
|
Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
|
Input Resistance(Ω) |
700±5 |
Defend Grade |
IP65 |
|
Output Resistance(Ω ) |
700±5 |
Cable(四芯屏蔽电缆) |
RWP4*12/0.15*10m | |
| |
|
|
