| Classification: |
Miniature load cell->handable scales |
| number: |
639M |
| name: |

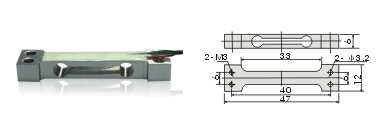

XY-639M |
| |
|
| |
Technical parameters：
| Capacity (g) |
500 |
| Comprehensive Error (%F.S) |
0.05 |
Temp.Effect on Span(%F.S/10℃) |
≤0.15 |
| Output Sensitivity (mv/v) |
0.8±0.1 |
Zero Output (mV/V) |
±0.3 |
| Non-linearity (%F.S) |
0.05 |
Input Resistance(Ω ) |
1000±50 |
| Repeatability (%F.S) |
0.05 |
Output Resistance(Ω ) |
1000±50 |
| Hysteresis (%F.S) |
0.05 |
Insulation Resistance(MΩ) |
≥2000(100VDC) |
| Creep (%F.S/3min) |
0.05 |
Excitation Voltage (V) |
5～10 |
| Zero Banlance (%F.S/1min) |
0.05 |
Use Temp.Range (℃) |
-10～+50 |
| Temp.Effect on Span (%F.S/10℃) |
0.3 |
Ultimate Overload (%F.S) |
150 | | | |
|
| |
|
|
