FEATURES:
Alloy steel Structure (40CrNiMoA&17-4PH )
construction ;Glue-sealing / Welding;
High stability.
APPLICATIONS：
Truck scales / Automobile examination/
cine Railroad track scales etc.

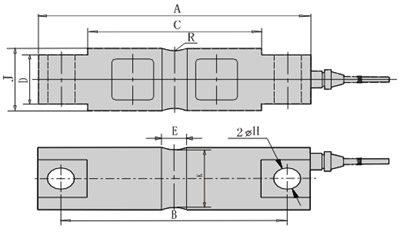

Dimensions:
|
量程（t） |
A |
B |
C |
D |
E |
R |
J |
K |
H |
| 5~10 |
206.2 |
174.7 |
133.2 |
28.4 |
15.7 |
R12.7 |
43.2 |
37.6 |
16.8 |
| 15~20 |
206.2 |
174.7 |
133.2 |
28.4 |
21.6 |
R12.7 |
43.2 |
37.6 |
16.8 |
| 30~60 |
206.4 |
215.9 |
165 |
60.2 |
25.4 |
R25.4 |
76.2 |
69.3 |
26.5 |
| 100 |
285.8 |
241.3 |
190.2 |
63.5 |
25.4 |
R25.4 |
88.9 |
82.3 |
26.9 |
接线方法:
Parameters：
| Rated Load(klb) |
5-10, 15-20, 30-60, 100 |
| Precision |
C3 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Composition Error(%F.S) |
0.02 |
Excitation Voltage（V） |
9～12（DC） |
| Rated output(mv/v) |
3.0±0.03 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.017 |
Use Temp. Range(℃ ) |
-20～+55 |
| Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10℃) |
0.02 |
| Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.014 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate 0verload(%F.S) |
200 |
| Input Resistance(Ω) |
700±10 |
Defend Grade |
IP65 |
| Output Resistance(Ω ) |
700±10 |
Cable (四芯屏蔽电缆) |
RWP4*12/0.15*9m | | |
| |
|
|
