XY-605E
Counter：952  2012-04-25 14:51:36

FEATURES:
          Aluminum-alloy,Colorless anodized,
          Glue-sealing,

APPLICATIONS:
          Electronic  counting scales / Platform scales etc.
          Recommended platform size: 200×200mm

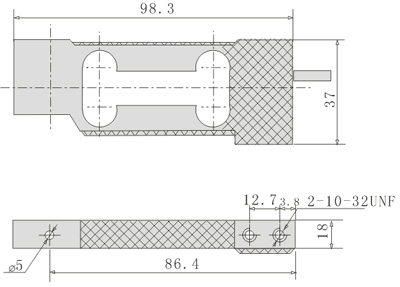

Dimensions：


Wiring Schematic Diagram：

Parameters：

 Rated Load(kg) 3, 5, 12
 Precision   C2 C3 Insulation Resistance(MΩ)   ≥5000(100VDC)
 Comprehensive Error(%F.S)  0.02 Excitation Voltage（V）   9～12（DC）
 Rated output(mv/v)   1.9±0.1 Compensated temp.Range(℃ )   -10～+40
 Non-linearity(%F.S)    0.03 0.017 Use Tempm. Range(℃ ) -35～+65
 Hysteresis(%F.S)  0.03 0.02 Temp.Effect on Zero(%F.S/10℃)   0.03 0.017
 Repeatability(%F.S)  0.01 Temp.Effect on Span(%F.S/10℃)   0.02 0.014
 Creep(%F.S/30min)   0.02 Safe Overload (%F.S)   120
 Zero Balance(%F.S)     ±1 Ultimate Overload(%F.S)   150
 Input Resistance(Ω)   394±6 Defend Grade IP65
 Output Resistance(Ω )  350±5 Cable (屏蔽电缆线) 0.25m
