FEATURES:
Alloy steel / Stainless steel, Bellows,Hermetically
sealed by laser, Ip68.
APPLICATIONS：
Platform scales / Hopper scales / Truck scales etc.

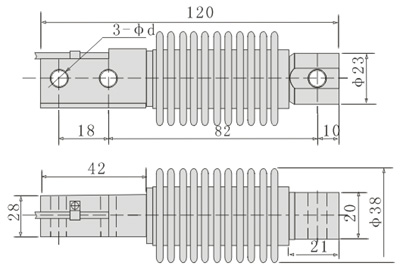

Dimensions：
|
量程(kg) |
10～200 |
250～500 |
|
d |
8.2 |
10.3 |
Wiring Schematic Diagram：
Parameters：
| Rated Load(kg) |
20,30,50,100,200,300,350,500 |
| Precision |
C3 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Comprehensive Error(%F.S) |
0.02 |
Excitation Voltage（V） |
10（DC） |
| Rated output(mv/v) |
2±0.002 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.017 |
Use Temp.Range(℃ ) |
-20～+55 |
| Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10℃) |
0.02 |
| Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.014 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
| Input Resistance(Ω) |
350±3 |
Defend Grade |
IP67/IP68 |
| Output Resistance(Ω ) |
350±10 |
Cable (屏蔽电缆线） |
RVVP4*12/0.15*3m | | |
| |
|
|
