FEATURES:
Alloy steel / Stainless steel structure,
Welding
APPLICATIONS:
Track scales / Railroad track scales etc.

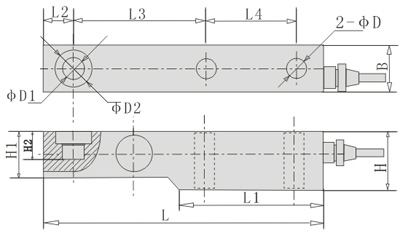

Dimensions：
|
量程（t） |
L |
L1 |
L2 |
L3 |
L4 |
D |
D1 |
D2 |
H |
H1 |
H2 |
B |
|
0.5-3 |
203 |
95 |
22 |
98 |
64 |
13 |
16 |
32 |
43 |
37 |
30 |
37 |
|
5 |
235 |
110 |
22 |
124 |
66 |
21 |
22 |
38 |
52 |
48 |
30 |
48 |
|
10 |
279 |
133 |
32 |
140 |
82 |
28 |
32 |
48 |
67 |
60 |
20 |
60 |
|
20 |
318 |
153 |
38 |
159 |
89 |
34 |
38 |
54 |
82 |
70 |
24 |
70 |

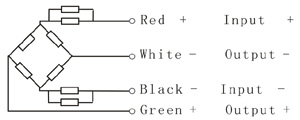

Wiring Schematic Diagram：
Parameters：
| Rated Load(t) |
0.5,1,1.5,2,2.5,3,5 |
| Precision |
C2 |
C3 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Composition Error(%F.S) |
0.03 |
0.02 |
Excitation Voltage（V） |
9～12（DC） |
| Rated output(mv/v) |
3.0±0.003 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linaerity(%F.S) |
0.03 |
0.02 |
Use Temp. Range(℃ ) |
-20～+55 |
| Hysteresis(%F.S) |
0.03 |
0.02 |
Temp.Effect on Zero(%F.S/10℃) |
0.02 |
| Repeatability(%F.S) |
0.02 |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
| Creep(%F.S/30min) |
0.03 |
0.02 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
| Input Resistance(Ω) |
350±3 |
Defend Grade |
IP67/IP68 |
| Output Resistance(Ω ) |
350±10 |
Cable (四芯屏蔽电缆线) |
RVVP4*12/0.15*3m | | |
| |
|
|
