FEATURES:
High precision and reliability, lt
takes partial force, bend force and
twisting force better .
APPLICATIONS：
Electronice crane scale etc.
|

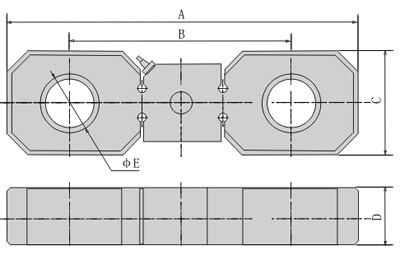

量程(t) |
2 |
3 |
5 |
10 |
30 |
30 |
|
A |
200 |
200 |
227 |
340 |
340 |
340 |
|
B |
133 |
133 |
147 |
210 |
210 |
210 |
|
C |
60 |
60 |
70 |
100 |
100 |
100 |
|
D |
22 |
22 |
28 |
38 |
44 |
54 |
|
E |
32 |
32 |
40 |
50 |
50 |
50 |
Wiring Schematic Diagram：
Parameters：
| Rated Load(t) |
2, 3, 5, 10, 15, 20, 30 |
| Precision |
C2 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Comprehensive Error(%F.S) |
0.03 |
Excitation Voltage（V） |
9～12（DC） |
| Rated output(mv/v) |
1.5±0.01 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.02 |
Use Temp.Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
| Repeatability(%F.S) |
0.015 |
Temp.Effect on Span(%F.S/10℃) |
0.01 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload(%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
| Input Resistance(Ω) |
350±10 |
Defend Grade |
IP65 |
| Output Resistance(Ω ) |
350±3 |
Cable (四芯屏蔽电缆线) |
3m | | |
| |
|
|
