FEATURES:
Stainless steel, Hermetically sealed by laser,
Anti-thuder and auto-resetting.
APPLICATIONS:
Truck scale / Railroad Track scale etc.

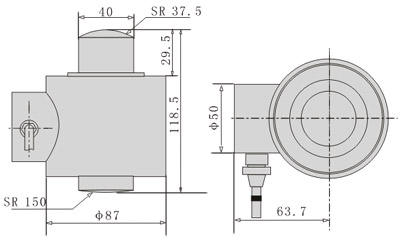

Dimensions：
Wiring Schematic Diagram：
Parameters：
| Rated Load(t) |
10,20,25,30,40,50 |
| Precision |
C3 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Comprehensive Error(%F.S) |
0.03 |
Excitation Voltage（V） |
9~12（DC） |
| Rated output(mv/v) |
1.5±0.004 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.017 |
Use Temp. Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10℃) |
0.017 |
| Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.014 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
| Input Resistance(Ω) |
700±7 |
Defend Grade |
IP68 |
| Output Resistance(Ω ) |
700±7 |
Cable (四芯屏蔽电缆线） |
10m | | |
| |
|
|
