FEATURES:
Alloy steel / Stainless steel,Hermetically
sealed by laser, Anti-thuder,Auto-resetting.
APPLICATIONS：
Truck scales, Railroad track scales,
Hopper scales etc.
|

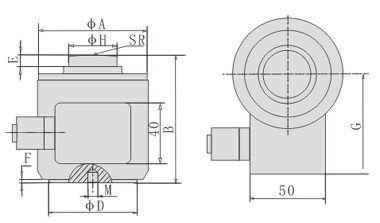

量程（klb）/尺寸(mm） |
A |
B |
C |
D |
E |
F |
G |
H |
M |
SR |
|
25.5 |
10.25 |
73 |
82.5 |
12 |
58 |
6.5 |
1.8 |
64 |
31.8 |
M12×1.75 |
152 |
|
100 |
40.6 |
105 |
127 |
34 |
82.5 |
8.0 |
11.0 |
87 |
58.7 |
M20×2.5 |
152 |
|
200 |
100 |
152.4 |
184.2 |
3 |
123.8 |
23.6 |
21.8 |
108.2 |
79.2 |
M20×2.5 |
432 |

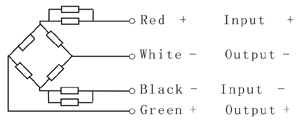

Wiring Schematic Diagram：
Parameters：
| Rated Load(t) |
10,25,40,60,100 |
| Precision |
C3 |
Insulation Resistance(MΩ) |
≥5000(VDC) |
| Comprehensive Error(%F.S) |
0.02 |
Excitation Voltage(V) |
9～12（DC） |
| Rated output(mv/v) |
2.0±0.002 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.017 |
Use Temp. Range(℃ ) |
-40～+80 |
| Hysteresis(%F.S) |
0.02 |
Temp.Effect on Zero(%F.S/10℃) |
0.017 |
| Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.014 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
| Input Resistance(Ω) |
450±5 |
Defend Grade |
IP68 |
| Output Resistance(Ω ) |
480±5 |
Cable (四芯屏蔽电缆线） |
10m | |
| |
|
|
