FEATURES:
Alloy steel/ Stainless steel, For use in
tension or compression application.
Welded seal.
APPLICATIONS：
Hanging scales / Hopper scales etc.
|

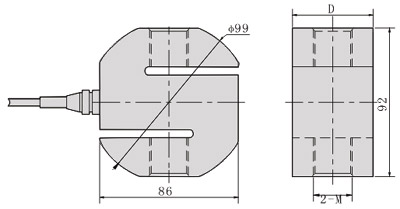

量程（t） |
D（mm） |
M（mm） |
|
0.5~1 |
32 |
M12×1.75 |
|
2~3 |
32 |
M20×2.5 |
|
4 |
36 |
M20×2.5 |
|
5 |
50 |
M24×2.5 |
Wiring Schematic Diagram：
Parameters：
| Rated Load(t) |
0.5, 1, 2, 3, 5 |
| Precision |
C2 |
C3 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Composition Error(%F.S) |
0.03 |
0.02 |
Excitation Voltage（V） |
10（DC） |
| Rated output(mv/v) |
2.0±0.02 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.03 |
0.02 |
Use Temp. Range(℃ ) |
-20～+55 |
| Hysteresis(%F.S) |
0.03 |
0.03 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
0.02 |
| Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
0.014 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate 0verload(%F.S) |
200 |
| Input Resistance(Ω) |
350±3 |
Defend Grade |
IP67/IP68 |
| Output Resistance(Ω ) |
350±10 |
Cable(四芯屏蔽电缆线） |
RWP4*12 | |
| |
|
|
