FEATURES:
Alum alloy structure, High precision.
For use in tension or compression.
Low capacity
APPLICATIONS：
Portable scales/ Tension or compression
application.
|

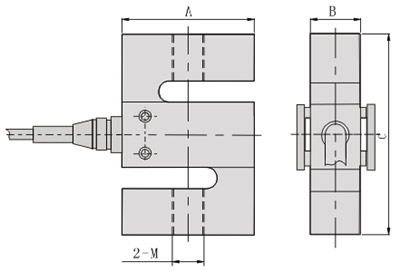

量程（kg） |
A |
B |
C |
M |
|
1,2,5 |
58 |
8 |
56 |
M4 |
|
10,20,50 |
50.8 |
12.7 |
65.3 |
M8 |
|
100 |
50.8 |
19.7 |
76.2 |
M12 |
|
150,200,300,500 |
64 |
23 |
82 |
M12 |

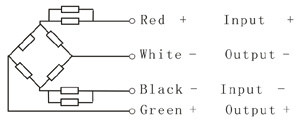

Wiring Schematic Diagram：
Parameter：
| Rated Load(kg) |
5, 10, 20, 50, 100, 150, 200, 300, 500 |
| Precision |
C2 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Composition Error(%F.S) |
0.03 |
Excitation Voltage（V） |
10（DC） |
| Rated output(mv/v) |
2.0±0.02 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.03 |
Use Temp. Range(℃ ) |
-20～+55 |
| Hysteresis(%F.S) |
0.03 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
| Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.03 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
120 |
| Zero Balance(%F.S) |
±1 |
Ultimate 0verload(%F.S) |
150 |
| Input Resistance(Ω) |
350±3 |
Defend Grade |
IP65 |
| Output Resistance(Ω ) |
350±10 |
Cable (四芯屏蔽电缆线） |
RWP4*12 | |
