FEATURES:
Alloy steel, glue-sealing.
APPLICATIONS：
Hanging scales, Vibratory feeding scales,
Mechanical conversion scales etc.
|

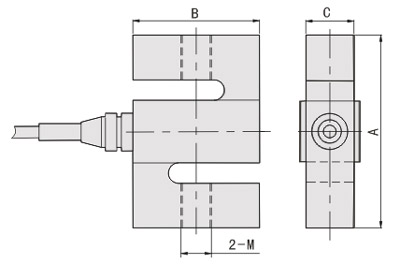

量程（kg） |
B |
C |
A
|
M |
|
公制 |
英制 |
|
100-500 |
50.8 |
19 |
76 |
M12 |
- |
|
1000 |
50.8 |
25.4 |
76 |
M12 |
3/4-16 |
|
2000-5000 |
76.2 |
25.4 |
108 |
M18×1.5 |
3/4-16 |

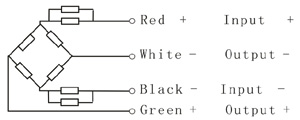

Wiring Schematic Diagram：
Parameters：
| Rated Load(kg) |
100,150,200,250,300,500,1000,2000,5000 |
| Precision |
C2 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Comprehensive Error(%F.S) |
0.03 |
Excitation Voltage（V） |
9~12（DC） |
| Rated output(mv/v) |
2.0±0.02 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.03 |
Use Temp. Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.03 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
| Repeatability(%F.S) |
0.01 |
Teep.Effect on Span(%F.S/10℃) |
0.03 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
120 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
150 |
| Input Resistance(Ω) |
700±7 |
Defend Grade |
IP65 |
| Output Resistance(Ω ) |
700±7 |
Cable (四芯屏蔽电缆线） |
3m | | |
| |
|
|
