FEATURES:
Alloy steel / Stainless steel,Hermetically
sealed by laser, Outstanding corrosion
explosion resistance.
APPLICATIONS：
Force control&measurement in producing process etc.
|
量程（t） |
A |
B |
C |
D |
E |
F |
G |
H |
|
1-5（t） |
118 |
46 |
86 |
34 |
100 |
153 |
M24×2 |
6 |
|
10（t） |
138 |
60 |
98 |
50 |
116 |
180 |
M39×2 |
11 |
|
20（t） |
186 |
70 |
133 |
73 |
154 |
228 |
M50×2 |
14 |

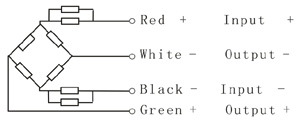

Wiring Schematic Diagram：
parameters：
| Rated Load(t) |
1, 2, 3, 5, 10, 20 |
| Precision |
C1 |
Insulation Resistance(MΩ) |
≥5000(VDC) |
| Comprenhensive Error(%F.S) |
0.05 |
Excitation Voltage(V) |
9～12（DC） |
| Rated output(mv/v) |
3.0±0.03 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.05 |
Use Temp.Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.05 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
| Repeatability(%F.S) |
0.03 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
| Input Resistance(Ω) |
700±10 |
Defend Grade |
IP67/IP68 |
| Output Resistance(Ω ) |
700±10 |
Cable |
四芯屏蔽电缆,3~5m | | |
| |
|
|
