FEATURES:
Alloy steel / Stainless steel, Hermetically
sealed by laser, Outstanding corrosion
explosion resistance.
APPLICATIONS：
Force control in producing process/
Vibratory feeding equipment etc.
|

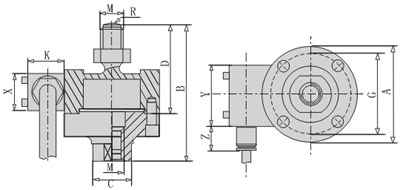

量程（t） |
ΦA |
B |
ΦC |
D |
ΦG |
K |
M |
R |
X |
Y |
Z |
|
0.05-1 |
50 |
72 |
21 |
47 |
42 |
22 |
M12 |
60 |
20 |
32 |
25 |
|
2 |
90 |
112 |
33 |
72 |
70 |
25 |
M20×1.5 |
100 |
26 |
36 |
34 |
|
5 |
100 |
141 |
40 |
86 |
78 |
25 |
M24×2 |
100 |
26 |
36 |
34 |
|
10 |
135 |
197 |
68 |
122 |
105 |
26 |
M39×2 |
160 |
26 |
36 |
34 |
|
20 |
135 |
232 |
82 |
142 |
125 |
26.5 |
M48×2 |
160 |
26 |
36 |
34 |

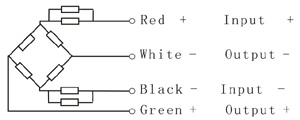

Wiring Schematic Diagram：
Parameters：
| Rated Load(t) |
0.05, 1, 2, 5, 10, 20 |
| Precision |
C1 |
G1 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Comprehensive Error(%F.S) |
0.05 |
0.1 |
Excitation Voltage（V） |
9～12（DC） |
| Rated output(mv/v) |
2.0±0.04 |
Compensated temp. Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.05 |
0.1 |
Use Temp. Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.05 |
0.1 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
| Repeatability(%F.S) |
0.03 |
0.05 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
| Creep(%F.S/30min) |
0.02 |
0.1 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
| Input Resistance(Ω) |
730±4 |
Defend Grade |
IP68 |
| Output Resistance(Ω ) |
700±3 |
Cable(四芯屏蔽电缆线) |
3-5m | | |
| |
|
|
