FEATURES:
Alloy steel / Stainless steel,Hermetically
sealed by laser,Outstanding corrosion
explosion resistance.
FEATURES:
Truck scales/Railroad Track scales/Hopper scales etc.
|

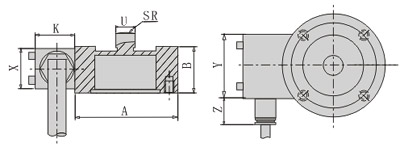

量程（t） |
ΦA- |
B |
R |
K |
ΦU |
X |
Y |
Z |
|
0.05-1 |
50 |
30 |
60 |
25 |
13 |
20 |
32 |
25 |
|
2-5 |
90 |
48 |
100 |
27 |
25 |
26 |
36 |
34 |
|
10-20 |
115 |
60 |
160 |
27 |
23 |
26 |
36 |
34 |
|
50 |
155 |
90 |
300 |
28 |
44 |
26 |
36 |
34 |

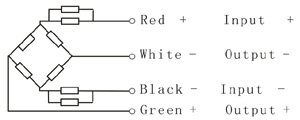

Wiring Schematic Diagram：
Parameters：
| Rated Load(t) |
0.05, 1, 2, 5, 10, 20 |
| Precision |
C1 |
G1 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Comprehensive Error(%F.S) |
0.05 |
0.1 |
Excitation Voltage（V） |
9～12（DC） |
| Rated output(mv/v) |
2.0±0.04 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.05 |
0.1 |
Use Temp. Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.05 |
0.1 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
| Repeatability(%F.S) |
0.03 |
0.05 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
| Creep(%F.S/30min) |
0.02 |
0.1 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
200 |
| Input Resistance(Ω) |
730±4 |
Defend Grade |
IP68 |
| Output Resistance(Ω ) |
700±3 |
Cable (四芯屏蔽电缆线) |
3-5m | | |
| |
|
|
