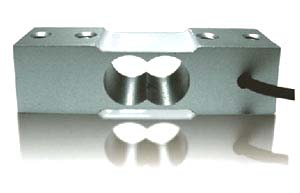

 FEATURES:
Aluminum-alloy, Colorless anodized,
Glue-sealing.
APPLICATIONS:
Electronic counting scales / Platform scales etc.
Recommended platform size: 200×200mm
Wiring Schematic Diagram：
Parameters：
| Rated Load(kg) |
10,15,20,30 |
| Precision |
C2 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Comprehensive Error(%F.S) |
0.03 |
Excitation Voltage（V） |
9~12（DC） |
| Rated output(mv/v) |
2±0.01 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.03 |
Use Temp. Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.03 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
0.05 |
| Repeatability(%F.S) |
0.01 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
0.03 |
| Creep(%F.S/30min) |
0.02 |
Safe Overload (%F.S) |
120 |
| Zero Balance(%F.S) |
±1 |
Ultimate Overload(%F.S) |
150 |
| Input Resistance(Ω) |
1090±10 |
Defend Grade |
IP65 |
| Output Resistance(Ω ) |
1000±5 |
Cable(屏蔽电缆线） |
φ4 , 3m | |
| |
|
|
