XY-607
Counter：1112  2012-04-27 9:52:03

FEATURES:
            Aluminum-alloy, Colorless anodized,
            Glue-sealing.

APPLICATIONS:
            Electronic personal scales.
            Recommended platform size: 400×400mm

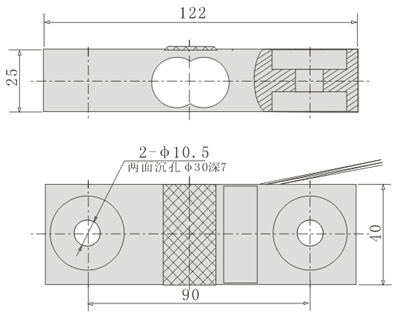

Dimensions：
Wiring Schematic Diagram：

Parameters：

 Rated Load(kg) 100,150,200
 Precision  C1 C2 Insulation Resistance(MΩ)   ≥5000(100VDC)
 Comprehensive Error(%F.S)   0.05 0.03 Excitation Voltage（V）   9～12（DC）
 Rated output(mv/v)    2±0.1 Compensated temp.Range(℃ )   -10～+40
 Non-linearity(%F.S)    0.05 0.03 Use Temp. Range(℃ ) -35～+65
 Hysteresis(%F.S)    0.05 0.03 Temp.Effect on Zero(%F.S/10℃)   0.05 0.03
 Repeatability(%F.S)   0.03 0.01 Temp.Effect on Span(%F.S/10℃)   0.03 0.02
 Creep(%F.S/30min)   0.03 0.02 Safe Overload (%F.S)   120
 Zero Balance(%F.S)     ±1 Ultimate Overload(%F.S)   150
 Input Resistance(Ω)  1090±10 Defend Grade IP65
 Output Resistance(Ω )  1000±5 Cable(四色单线) 0.25m
