FEATURES:
Aluminum alloy/ alloy steel structure;
Simple and Reliable/High precision
APPLICATIONS:
Truck scale/Railroad track scale/Hopper scale etc.
|
量程（t） |
D1 |
D4 |
D5 |
H1 |
M |
SR |
|
0.02-1 |
10 |
42 |
50 |
30 |
M5 |
30 |
|
2 |
22 |
70 |
90 |
48 |
M10 |
50 |
|
3 |
22 |
70 |
90 |
48 |
M10 |
50 |
|
5 |
22 |
70 |
90 |
48 |
M10 |
50 |
|
10 |
32 |
90 |
115 |
60 |
M12 |
80 |
|
20 |
32 |
90 |
115 |
60 |
M12 |
80 |
|
30 |
42 |
125 |
155 |
90 |
M16 |
100 |

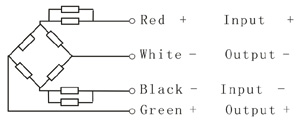

Wiring Schematic Diagram：
Parameters：
| Rated Load(t) |
500(KG), 1, 2, 3, 5, 10, 20, 30 |
| Precision |
C1 |
G1 |
Insulation Resistance(MΩ) |
≥5000(100VDC) |
| Composition Error(%F.S) |
0.05 |
Excitation Voltage(V) |
9～12（DC） |
| Rated output(mv/v) |
2.0±0.04 |
Compensated temp.Range(℃ ) |
-10～+40 |
| Non-linearity(%F.S) |
0.05 |
0.1 |
Use Temp. Range(℃ ) |
-35～+65 |
| Hysteresis(%F.S) |
0.05 |
0.1 |
Temp.Effect on Zero(%F.S/10℃) |
0.03 |
| Repeatability(%F.S) |
0.03 |
0.05 |
Temp.Effect on Span(%F.S/10℃) |
0.02 |
| Creep(%F.S/30min) |
0.02 |
0.1 |
Safe Overload (%F.S) |
150 |
| Zero Balance(%F.S) |
±1 |
Ultimate 0verload(%F.S) |
200 |
| Input Resistance(Ω) |
730±4 |
Defend Grade |
IP65 |
| Output Resistance(Ω ) |
700±3 |
Cable (四芯屏蔽电缆线) |
3-5m | | |
| |
|
|
